Precision Sieving for Pharmaceutical Processing
Russell Finex is a UK-headquartered global leader in fine mesh separation technology, founded in 1934 and now operating across 140+ countries. With over 90 years of experience in removing contamination from ingredients and finished products, Russell Finex manufactures vibratory sieves, screeners, and ultrasonic mesh deblinding systems from ISO 9001 accredited facilities.
For pharmaceutical manufacturing, Russell Finex’s Compact Sieve platform provides check-screening and safety sieving across three configurations — standard, high-containment, and vacuum conveying — all sharing less than half the headroom of traditional vibratory sieves with tool-free disassembly for rapid changeover.
MHS Pharma represents Russell Finex across the Northeast United States, supporting pharmaceutical manufacturers with equipment selection and application engineering for sieving and screening requirements.
Why Russell Finex
Half the Headroom
The Russell Compact Sieve platform uses less than half the height of a traditional vibratory sieve while achieving higher throughput per unit mesh area. Straight-through design with side-mounted motor fits into existing production lines and areas of limited headroom.
OEL 5 Containment
The Compact Airlock Sieve achieves validated OEL 5 containment (<1 µg/m³) at the equipment level via a patented TLI (Twist, Lock and Inflate) pneumatic clamping system — without requiring an external isolator or downflow booth.
Ultrasonic Deblinding
The Vibrasonic® 2000 system applies ultrasonic energy directly to the sieve mesh, preventing blinding with cohesive, static-prone, or fine powders — down to 20 µm (635 mesh). Eliminates the need for mechanical scrapers, brushes, or rubber balls.
Pharmaceutical-Grade Construction
cGMP-compliant design with FDA-compliant materials and ATEX certification for hazardous areas. Contact parts polishable to 0.1 Ra. Full DQ/IQ/OQ/PQ documentation packages available to support validation.
Applications
Russell Finex equipment serves pharmaceutical check-screening and safety sieving:
- Safety screening of incoming raw materials, excipients, and APIs
- Check screening of finished powders prior to tablet compression or capsule filling
- High-containment sieving of potent compounds (HPAPI / OEB 4–5)
- Inline screening during pneumatic conveying
- Deagglomeration of milled and blended powders
- Particle size control for solid dose manufacturing
Equipment Range
|

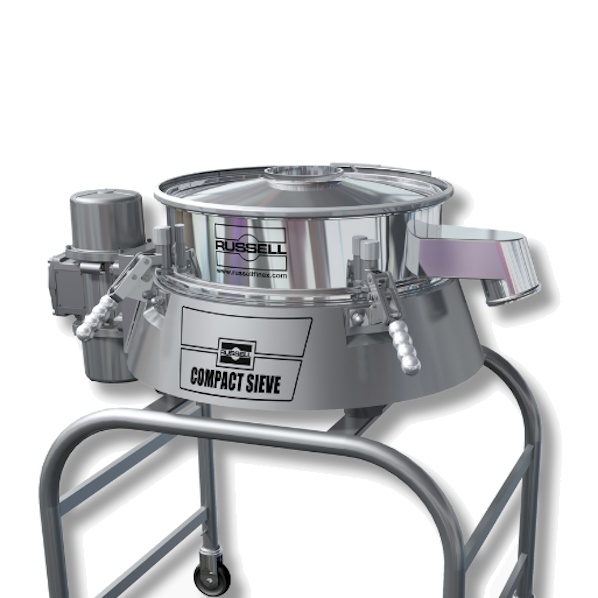

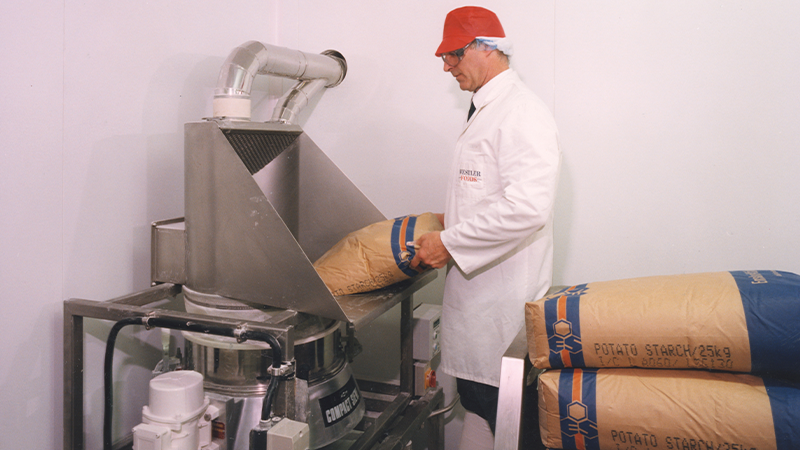

Russell Compact Sieve® High-capacity vibratory check screener for safety sieving and contamination removal from powders and liquid slurries. Tool-free disassembly, as low as 70 dBA, and half the headroom of traditional vibratory sieves. Also available as a 3-in-1 Sieving Station (bag-tip + sieve + magnetic trap) and Self-Loading Sieve with vacuum-assisted auto-loading up to 10 m. 250–1,500 mm diameters · Pharma powders to 1,000 kg/h (C600) · Vibrasonic® deblinding option · ATEX available |
|
Russell Compact Airlock Sieve™ High-containment vibratory sifter with patented TLI (Twist, Lock and Inflate) pneumatic clamping system achieving validated OEL 5 containment (<1 µg/m³). Minimal operator involvement — designed for potent compound handling including cytotoxic and hormonal APIs. Contact parts polishable to 0.1 Ra. OEL 5 (<1 µg/m³) · Patented TLI airlock · cGMP · Full IQ/OQ/PQ documentation |
|
Russell Compact Airswept Sieve™ Pneumatic vacuum conveying sieve that screens and conveys powders in one dust-tight operation — eliminating the need for separate sieve and conveyor setups. Achieves up to 4× the capacity of standard vacuum conveying sieves. Fits into any vacuum conveying line. Sieving + conveying in one step · 4× capacity · Dust-tight · Compact inline design |
MHS Pharma — Northeast US Representative
MHS Pharma provides direct technical representation for Russell Finex across the Northeast United States. We help pharmaceutical manufacturers select and integrate the right sieving solutions for their process lines — from initial assessment through installation and ongoing support.
