POLYGRAN®
Production Roller Compactor — Gerteis
Overview

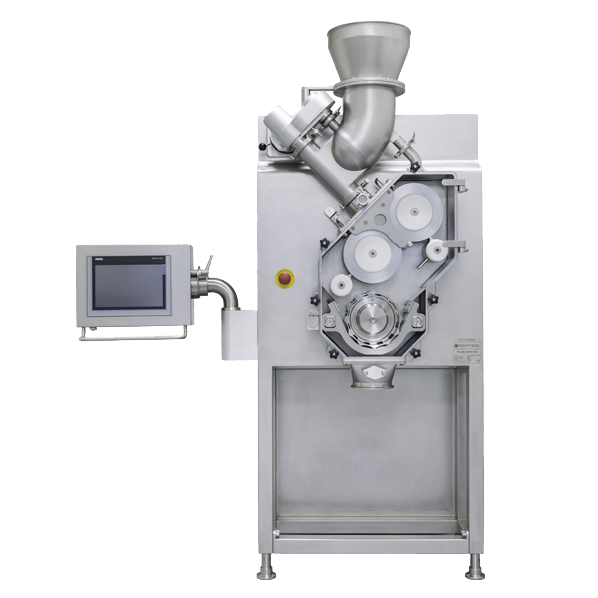

The POLYGRAN® is Gerteis’ production-scale roller compactor built around simplified handling and cleverly engineered parts assembly. It delivers the same core dry-granulation know-how as the PACTOR® line in a more accessible package, with throughput from 500 g per trial up to 300 kg/h.
Where the PACTOR® series prioritizes maximum flexibility for difficult products, the POLYGRAN® is engineered for operations that value straightforward maintenance and fast changeover. The variable gap design adjusts during operation to control ribbon properties, and the perfect gap seal system minimizes powder bypass and cross-contamination.
Key Specifications
| Throughput | 500 g per trial up to 300 kg/h |
| Press Force | 1–15 kN/cm |
| Roller Speed | 2–20 rpm |
| Gap | 2–5 mm |
| Weight | 1,200 kg |
| Controls | Windows-based PC, 21 CFR Part 11 compliant |
Key Features
Simplified Parts Assembly
Reduced interchangeable parts count means rapid cleaning and changeover. Advanced feeding hopper design accommodates varied process requirements.
Variable Gap Design
Adjusts gap during operation to control ribbon properties. Perfect gap seal system minimizes powder bypass and cross-contamination.
Adjustable Screen Clearance
Optimizes particle size distribution at the mill for different formulation requirements. Multiple granulator rotor and screen options available.
Multiple Roller Surfaces
Press roller surfaces available in smooth, knurled, and power grip configurations. Validated gap and force measurement with full process data acquisition.
Applications
- Development, pilot plant, clinical, and full-scale production
- Commercial dry granulation for tablets, capsules, and sachets
- Multi-product facilities with frequent changeover
- Operations prioritizing maintenance simplicity and operator training
- Pharmaceutical, chemical, and food industry applications
