MINI-POLYGRAN®
Compact Lab Roller Compactor — Gerteis
Overview

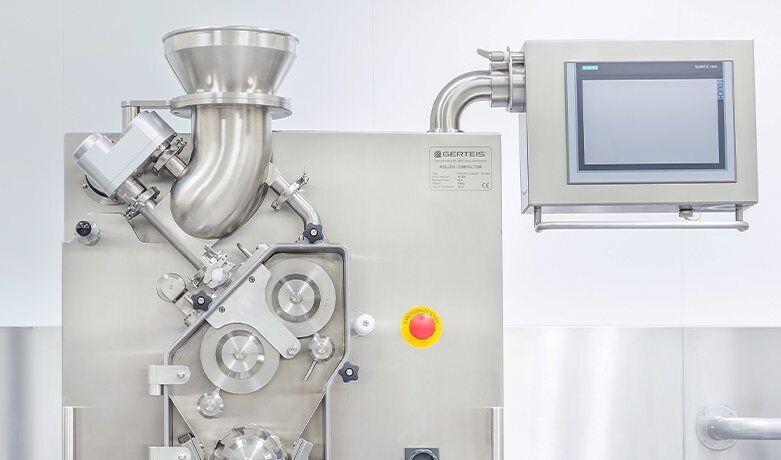

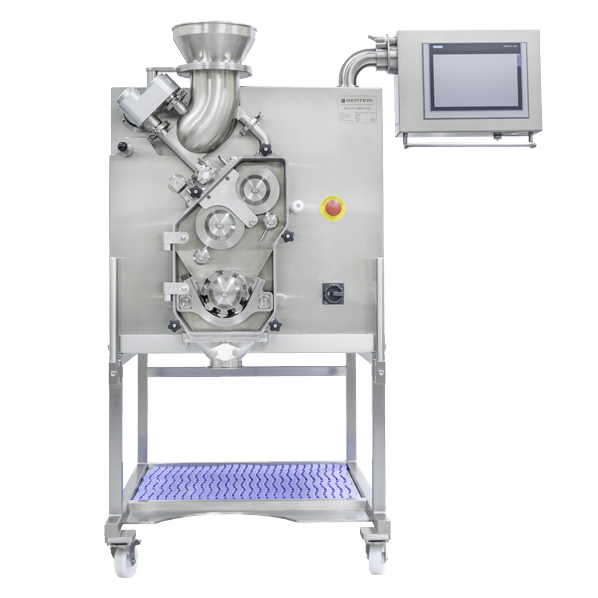

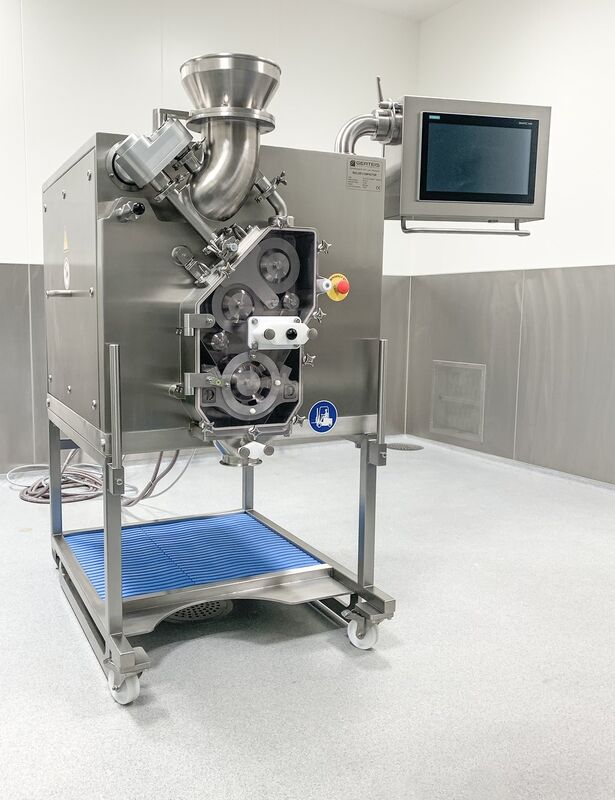

The MINI-POLYGRAN® is Gerteis’ smallest roller compactor, balancing performance with laboratory flexibility. It processes materials from as little as 10 g and scales to 50 kg/h. It belongs to Gerteis’ POLYGRAN® series — the same core press-roller alignment and dry-granulation know-how as the premium PACTOR® line, at a more accessible price point.
Maintenance is among the fastest in the industry thanks to the simplified POLYGRAN® parts assembly with a reduced component count. The patented roller design generates virtually no excess heat during compaction, and the large roll diameter delivers longer dwell times for more consistent ribbon density. A wheeled subframe allows convenient repositioning within the lab.
Key Specifications
| Throughput | 10 g per trial up to 50 kg/h |
| Press Force | 1–15 kN/cm |
| Roller Speed | 1–10 rpm |
| Gap | 1–4 mm |
| Weight | 500 kg |
| Advanced OEL Design | <5 µg/m³ (option) |
| Controls | Windows-based PC, 21 CFR Part 11 compliant |
| Mobility | Wheeled subframe |
Key Features
Simplified POLYGRAN® Parts Assembly
Reduced parts count means faster cleaning, less training for new users, and shorter downtime between batches.
Small Amount Funnel
Available for trials with as little as 10 g. A constant-feed system guarantees repeatable powder delivery with validated force and gap measurement.
Patented Roller Design
Generates virtually no excess heat during compaction. Large roll diameter delivers longer dwell times for more consistent ribbon density.
Scale-Up to POLYGRAN®
Process knowledge transfers directly to the production-scale POLYGRAN® using the same geometry. Press roller surfaces available in smooth, knurled, or custom designs.
Applications
- Laboratory R&D and formulation feasibility studies
- Development work with small quantities of API
- Small-scale production for clinical supplies
- Pharmaceutical, chemical, and food applications
- Shared laboratory environments with space constraints
MHS Pharma — Northeast US Representative
MHS Pharma provides direct technical representation for Gerteis across the Northeast United States. Contact us to discuss the MINI-POLYGRAN® for your application.
