Pharmaceutical Rotary Sifter
High-Throughput Inline Sifting and Classification. Frewitt SW and RS Series.
Overview

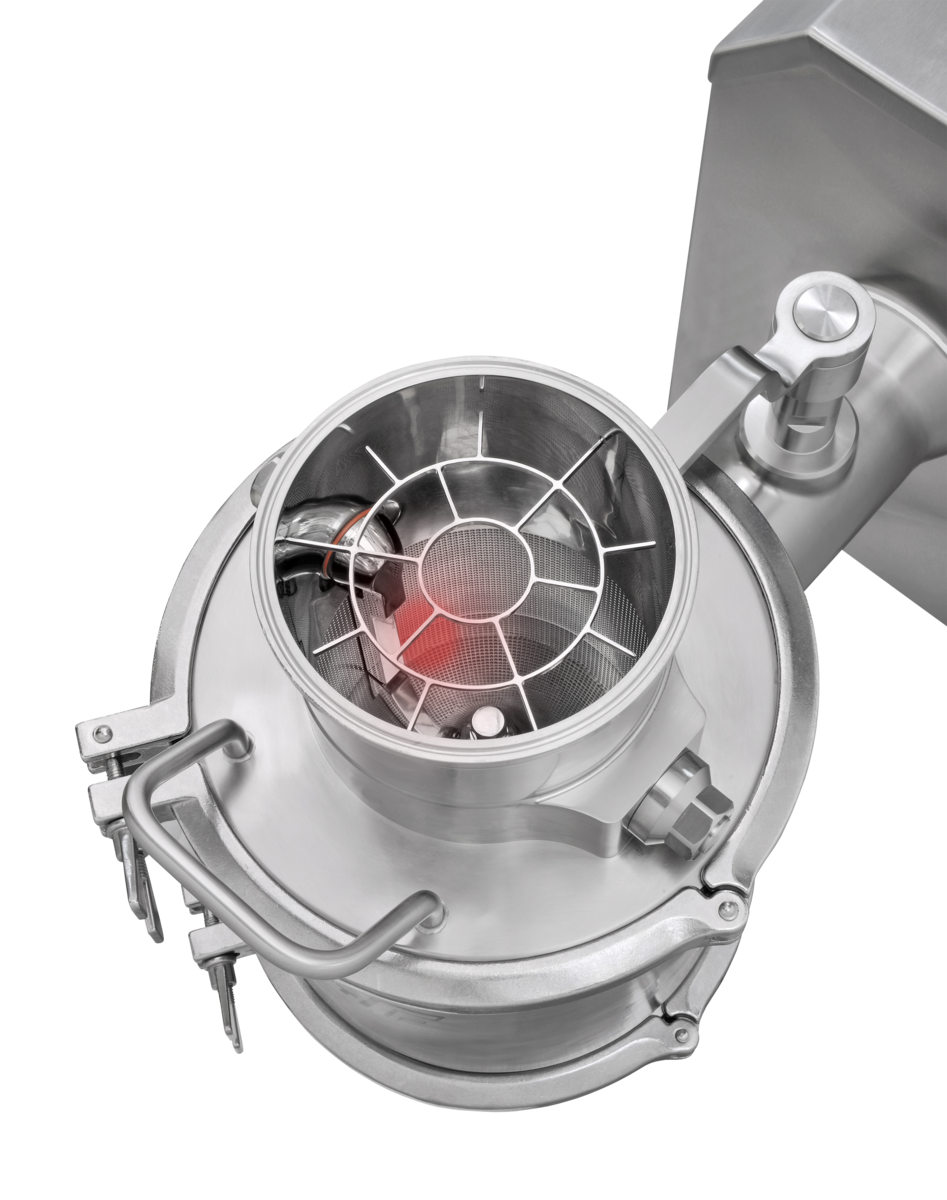

Rotary sifters handle the highest throughput of any Frewitt milling head. A rotating drum screen classifies, deagglomerates, and safety-screens powder at rates up to 25,000 kg/h. The gentle tumbling action avoids over-processing, making rotary sifting the right choice when the goal is classification or deagglomeration rather than true size reduction.

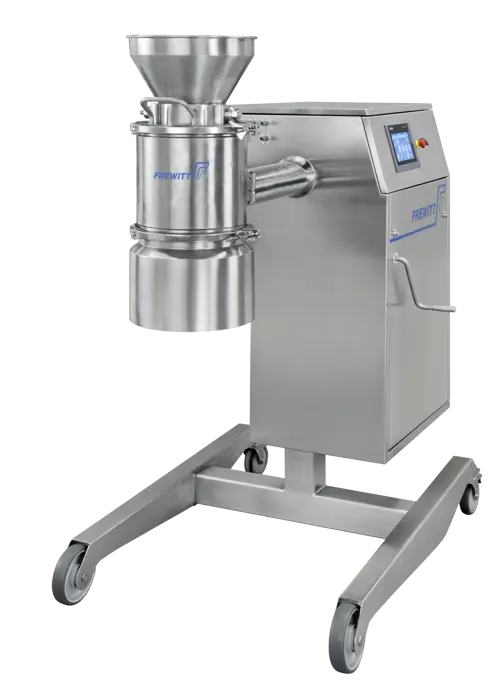

The FlexMill SW-200 is the premium rotary drum sifter head, running on the FlexMill platform with automatic head detection, touchscreen HMI, and 21 CFR Part 11 data integrity. It handles up to 15,000 kg/h and screens material down to 150 microns. GMP/FDA compliant construction with optional WIP, CIP, and SIP cleaning.

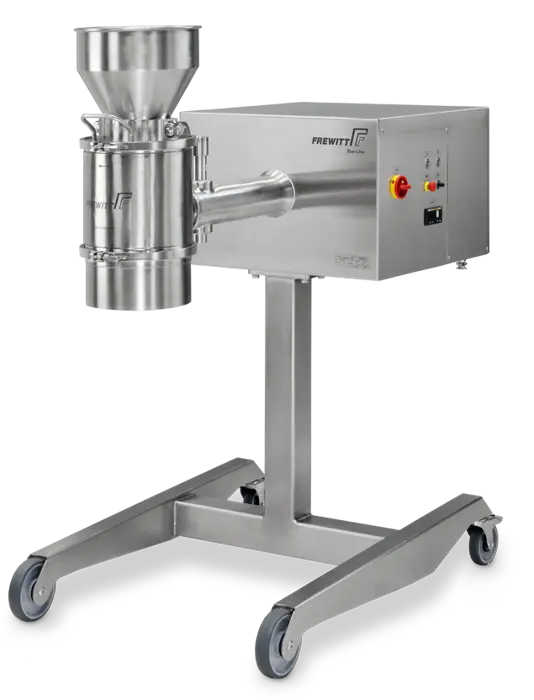

The EasyMill RS-200 and RS-250 deliver the same rotary sifting process on a simpler platform with button-and-display controls. The RS-250 reaches 25,000 kg/h, the highest throughput of any unit in the entire Frewitt range. At 160 to 200 kg on a mobile stand, both models reposition easily between suites.

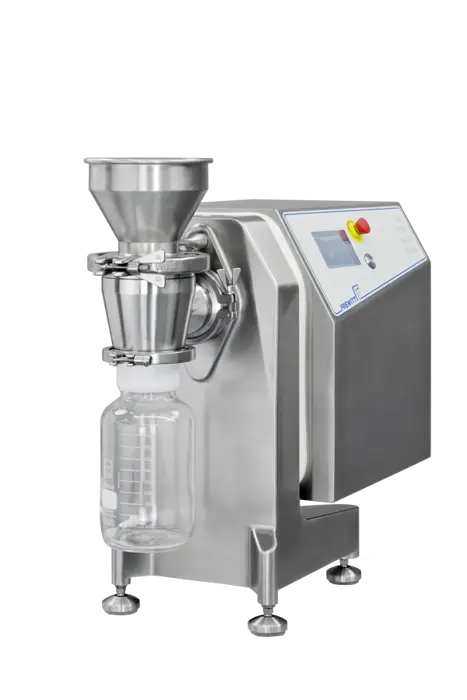

Lab-scale sifting starts on the FlexMill Lab platform, which includes a rotary sifter head for process development. The same screening principles apply at production scale, so parameters established in the lab carry forward to the SW and RS production heads.
Key Specifications
| Output Size | Down to 150 µm |
| Throughput (SW-200) | Up to 15,000 kg/h |
| Throughput (RS-200) | Up to 15,000 kg/h |
| Throughput (RS-250) | Up to 25,000 kg/h |
| Temperature Range | -20 °C to +60 °C |
| Max Product Density | 2 kg/dm³ |
| Construction | AISI 316/316L interior, Ra ≤ 0.8 µm |
| Compliance | GMP/FDA (FlexMill), GMP/EHEDG (EasyMill) |
| Weight (RS-200/RS-250) | 160 / 200 kg |
Key Features
Highest Throughput in the Range
The RS-250 handles up to 25,000 kg/h. No other Frewitt milling head comes close. Designed for high-volume production lines where sifting must keep pace with upstream and downstream equipment.
Gentle Classification
Rotating drum action tumbles material through the screen rather than forcing it. Preserves particle integrity for granulates and excipients where over-milling would generate excess fines.
Platform Compatibility
Rotary sifter heads share the FlexMill and EasyMill base units with conical sieve, oscillating, and hammer mill heads. Add sifting capability to an existing Frewitt line by purchasing a head, not a separate machine.
Inline Integration
Fits directly into powder processing lines between dryers, blenders, tablet presses, or packaging equipment. Safety screening, classification, and deagglomeration in a single inline step.
Two Platform Options
FlexMill SW: touchscreen HMI, automatic head detection, 21 CFR Part 11. EasyMill RS: button controls, lighter, EHEDG compliant. Same sifting process, different automation levels.
Compact and Mobile
EasyMill RS units weigh 160 to 200 kg on a mobile stand. FreLift lifting column option for height adjustment and flexible integration with upstream and downstream equipment.
Models
| SW-50 (Lab) | Lab-scale rotary sifter head on the FlexMill Lab platform. Process development and screening trials. |
| SW-200 | FlexMill rotary drum sifter. Up to 15,000 kg/h. Auto-detection, touchscreen HMI, CFR Part 11. |
| RS-200 | EasyMill rotary sifter. Up to 15,000 kg/h. Button controls, mobile stand, GMP/EHEDG. 160 kg. |
| RS-250 | EasyMill rotary sifter. Up to 25,000 kg/h. Highest throughput in the Frewitt range. 200 kg. |
Applications
- Safety screening of incoming raw materials and excipients
- Classification of granulates after fluid bed drying or high-shear granulation
- Deagglomeration of caked or compacted powders
- Inline sifting between process steps in continuous manufacturing
- High-volume production screening up to 25,000 kg/h
- Quality checkpoint screening before blending or compression
Options
- CIP, WIP, and SIP cleaning systems
- ATEX Zone 0/20 certification
- FreLift mobile lifting column
- 21 CFR Part 11 / GAMP 5 compliance (FlexMill platform)
- Disconnect module for flexible height adjustment
MHS Pharma. Northeast US Representative for Frewitt.
MHS Pharma provides direct technical representation for Frewitt across the Northeast United States. Contact us to discuss rotary sifting for your application.
