Pharmaceutical Pin Mill
Dry Micronization to D90 Under 8 Microns. Frewitt PMC and PMV Series.
Overview
Frewitt’s pin mills achieve dry micronization to D90 under 8 microns in a single pass, without a separate air classifier. This makes them a mechanical alternative to jet milling for APIs and excipients where tight particle size control directly affects dissolution rate and bioavailability.

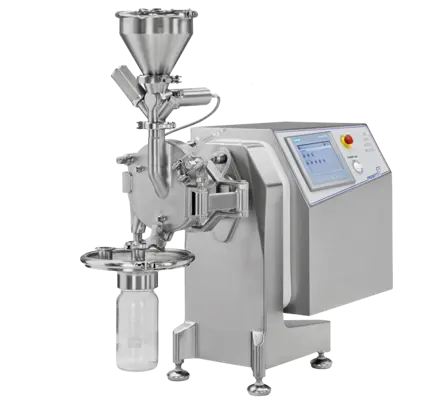

The PMC-160 is the compact model, handling batch sizes from 50 g up to 2 kg or continuous throughput up to 50 kg/h. At 350 kg, it fits into lab and pilot environments. The PMC-260 is the production platform at 1,100 kg, with a double screw feeder designed for poor-flowing powders and an integrated cyclone filter with automatic pressure-impulse cleaning. Both models accept interchangeable milling heads, so a facility can run either the PMC-160 or PMC-260 head on the larger platform.

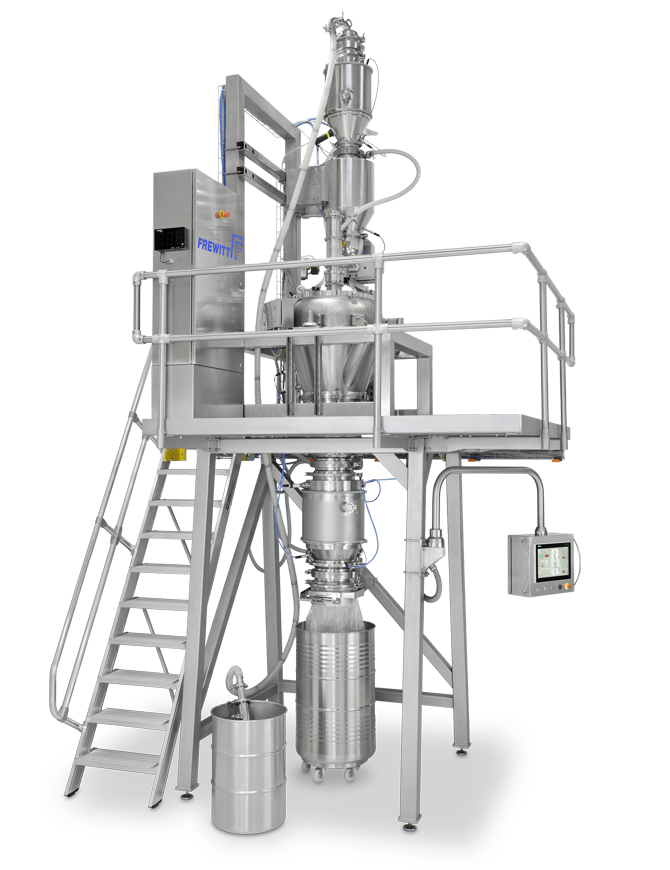

For applications requiring the finest particle size and inherent safety, the PMV-320 is a patent-protected vacuum pin mill achieving D90 under 6 microns at up to 1,000 kg/h. The vacuum process eliminates explosion risk entirely, requires no inerting, and integrates dosing, conveying, cooling, and filtration into a single footprint. Automated wash-in-place is standard.
All pin mill models are available with cryogenic cooling. The CryoFeeder CF-25 module uses direct liquid nitrogen injection to chill material before milling, enabling brittle fracture of heat-sensitive, elastic, or waxy compounds that resist conventional dry milling.
Key Specifications
| Particle Size (PMC) | D90 < 8 µm |
| Particle Size (PMV-320) | D90 < 6 µm |
| Throughput (PMC-160) | 50 g batch to 50 kg/h continuous |
| Throughput (PMC-260) | 2 to 150 l/h |
| Throughput (PMV-320) | 50 to 1,000 kg/h |
| Containment (PMV-320) | OEB 5 capable (< 1 µg/m³) |
| Explosion Risk (PMV-320) | None (vacuum process) |
| Temperature Range | -20 °C to +60 °C (cryo to -80 °C) |
| Construction | AISI 316/316L interior, GMP/FDA compliant |
| Noise (PMV-320) | < 69 dBA |
Key Features
Single-Pass Micronization
Achieves target PSD in one pass with no recirculation or separate classifier. D90 under 8 microns (PMC) or under 6 microns (PMV-320). Consistent particle size distribution from batch to batch.
Vacuum Safety (PMV-320)
The PMV-320 operates under vacuum, eliminating ignition conditions entirely. No explosion risk, no inerting required. Produces less than 69 dBA, remarkably quiet for a production mill.
Interchangeable Heads
The PMC-260 platform accepts both PMC-160 and PMC-260 milling heads. Switch between throughput ranges without a separate machine. One validation package covers both configurations.
Integrated Cooling
All models include integrated cooling as standard to prevent heat degradation of temperature-sensitive APIs during high-speed milling. Optional CryoFeeder CF-25 extends capability down to -80 °C with liquid nitrogen.
Poor-Flow Powder Handling
The PMC-260 features a double screw feeder guided at both ends with no metal contact and an integrated bridge-breaker. Handles cohesive and poorly flowing powders without feed interruption.
All-in-One Design (PMV-320)
Integrated dosing, vacuum pumps, cooling, conveying, and filtration in a single footprint. No separate cyclone or separator needed. Automated WIP is standard, not optional.
Models

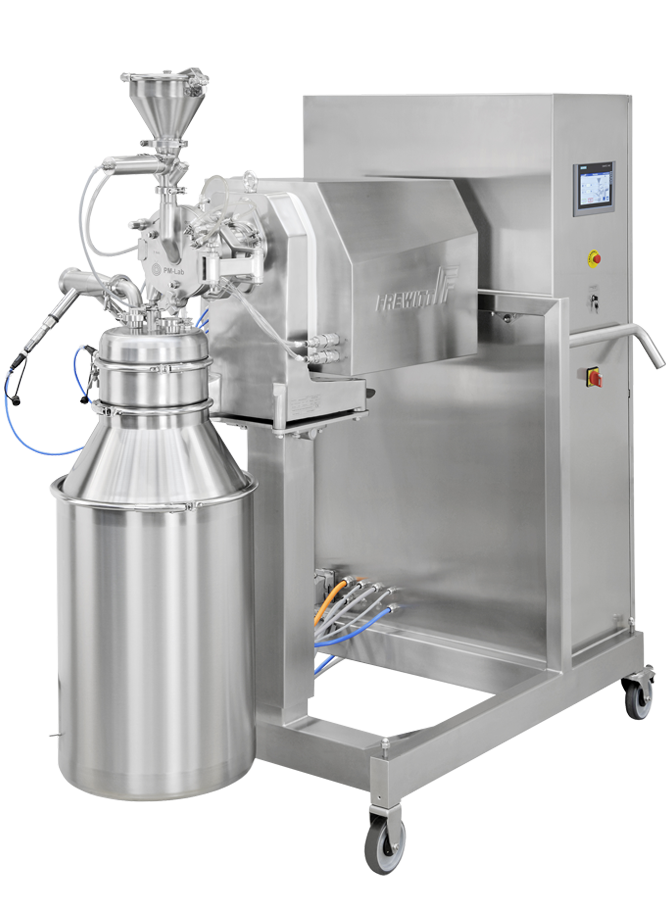

| PMC-160 | Compact pin mill. D90 < 8 µm. Batch (50 g to 2 kg) or continuous (50 kg/h). 350 kg. Lab, pilot, and small-scale production. |
| PMC-160 Cryo | PMC-160 with direct LN₂ injection. Milling down to -80 °C for heat-sensitive and elastic compounds. 600 kg. |
| PMC-260 | Production pin mill. D90 < 8 µm. 2 to 150 l/h. Double screw feeder, integrated cyclone filter, FreLift column. 1,100 kg. |
| PMC-260 Cryo | PMC-260 with LN₂ cryo cooling at production scale. Down to -196 °C. |
| PMV-320 | Patent-protected vacuum pin mill. D90 < 6 µm. 50 to 1,000 kg/h. Zero explosion risk. All-in-one with automated WIP. 2,500 kg. |
Applications
- Dry micronization of pharmaceutical APIs to D90 under 8 microns
- Fine grinding of excipients and intermediates for improved dissolution
- Batch processing for clinical trial materials (50 g minimum)
- Continuous production milling up to 1,000 kg/h
- High-potency compound milling with OEB 5 containment
- Cryogenic milling of heat-sensitive, elastic, or waxy compounds
- Inline micronization between process steps
Options
- CryoFeeder CF-25 liquid nitrogen cooling module
- ATEX certification
- WIP (wash-in-place) on PMC models
- Controlled milling under inerted atmosphere
- 21 CFR Part 11 / GAMP 5 compliance
- OEB 5 containment configuration (PMV-320)
- SFS-33 screw feeder (retrofittable on PMC-160)
